Product Description:
PVDF Aluminum composite panel is a high-end type of ACP where the outer skin is coated with a Polyvinylidene Fluoride (PVDF) resin paint. The panel consists of:
Two thin aluminum sheets (typically 0.2mm to 0.5mm thick).
A core material (usually low-density polyethylene or a fire-retardant mineral core).
The PVDF coating, applied to the exposed aluminum surface in a multi-layer process (primer, color, protective clear coat).
PVDF is a high-performance polymer (from the same family as Teflon) that gives the panels their exceptional durability. The coating typically contains 70-80% PVDF resin and 20-30% acrylic for pigment dispersion and flexibility.
Key Advantages of PVDF Coating:
-
Superior Weather Resistance & Color Retention:
-
Excellent resistance to UV radiation, preventing chalking, fading, and gloss loss for 20-30 years.
-
Withstands extreme temperatures, rain, humidity, and pollution.
-
Self-Cleaning & Anti-Stick Properties:
-
The smooth, non-porous surface resists dirt, pollutants, and graffiti. Rainwater tends to sheet off, washing away most contaminants.
-
Chemical & Corrosion Resistance:
-
Highly resistant to acids, alkalis, and industrial chemicals, making it ideal for harsh environments.
-
Flexibility & Formability:
-
Remains flexible after curing, allowing the panel to be bent, folded, and shaped (e.g., into curves or sharp corners) without cracking the coating.
-
Aesthetic Versatility:
-

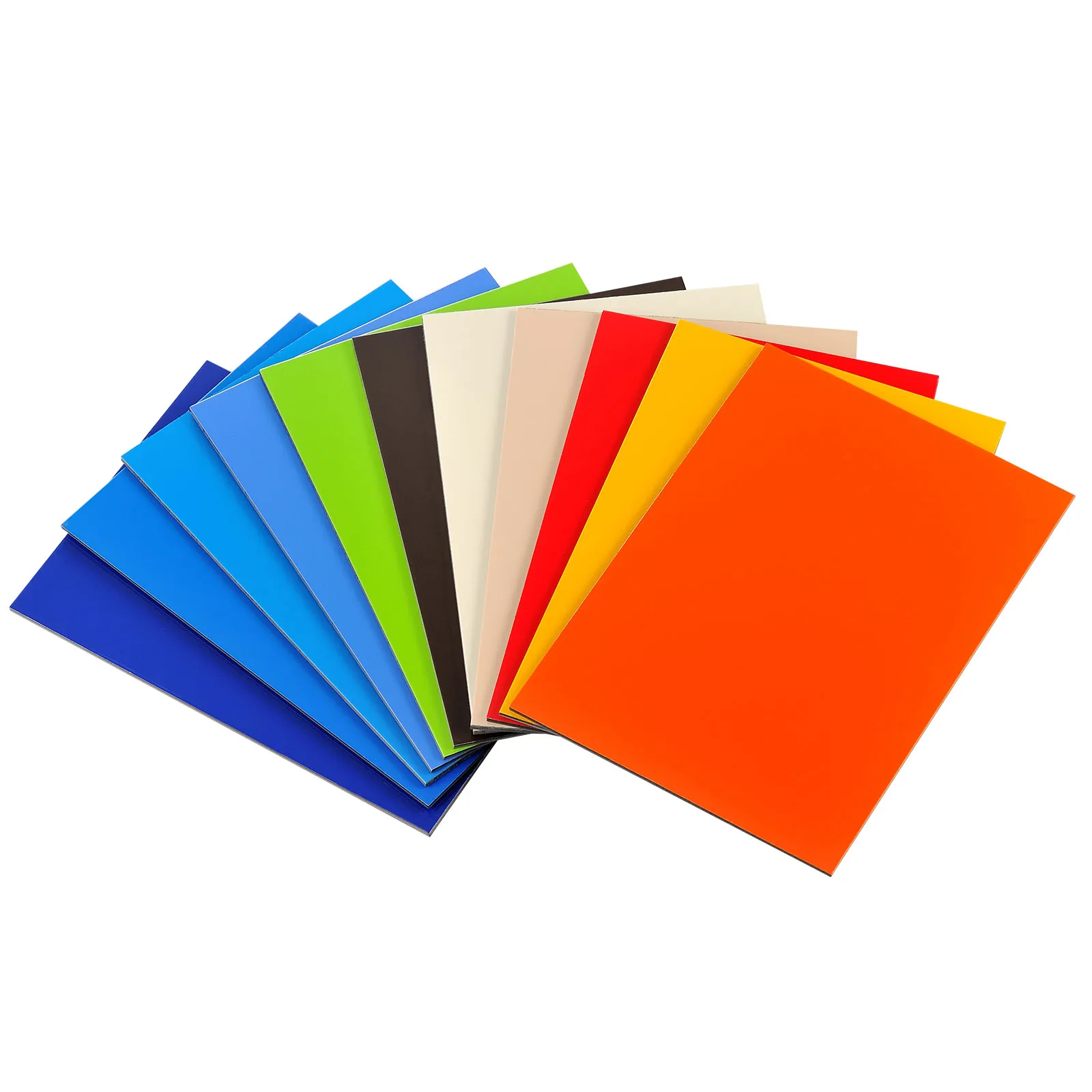

Available in a vast range of metallic, solid, and prismatic colors, as well as realistic stone, wood, and brushed metal finishes.
Technical Parameters:
| Brand Name |
Alushang |
| Exterior Cladding Thickness |
3-5MM |
| Colors |
200 Colors |
| Fireproof Functions |
Available |
| Bending Strength |
>85° |
| Applications |
Architectural Cladding, Interior Design |
| Minimum Order Quantity |
300 square meters |
| Warranty |
10-20 Years |
| Product Name |
Exterior Cladding ACP Aluminium Composite Panel |
| Weight |
Lightweight (3.8-4.5kg/㎡) |
Applications:

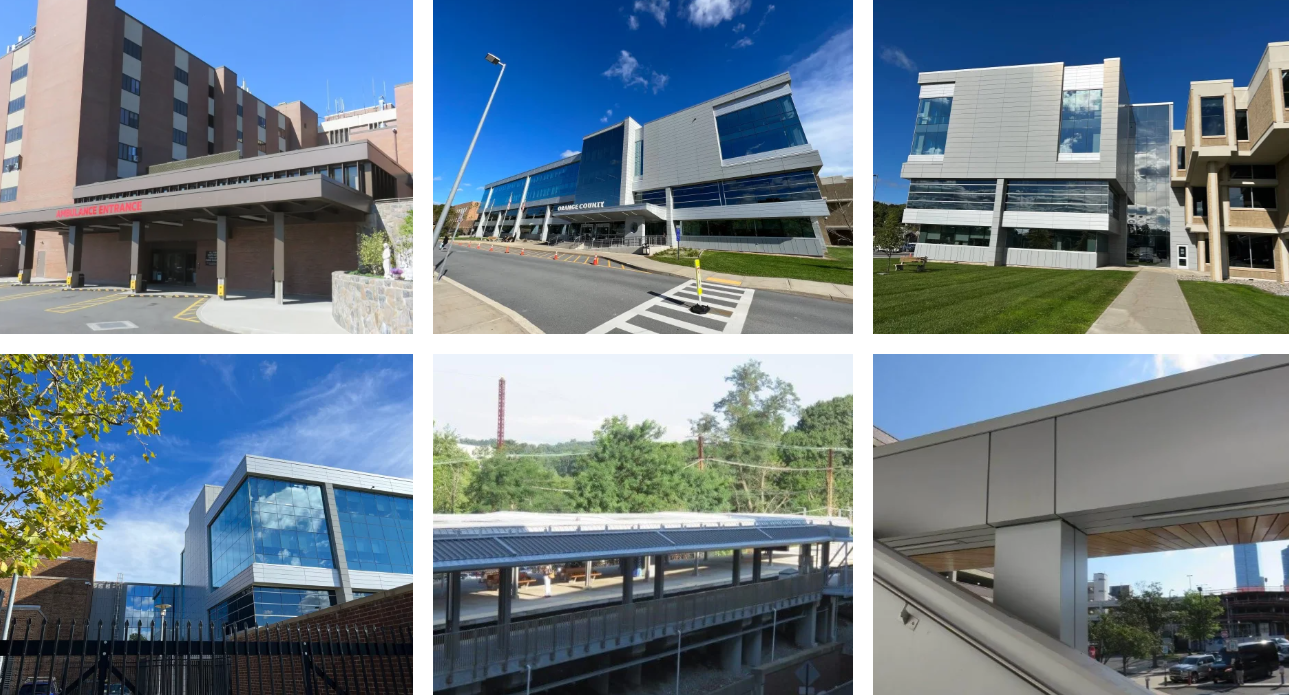

Common Applications
-
Building Exteriors (Cladding/Facades): The most common use, for corporate offices, malls, airports, and residential buildings.
-
Interior Decoration: Feature walls, ceilings, and column covers.
-
Signage & Branding: Durable and visually striking for shop fronts and advertising boards.
-
Renovation: Used to quickly modernize old building exteriors.

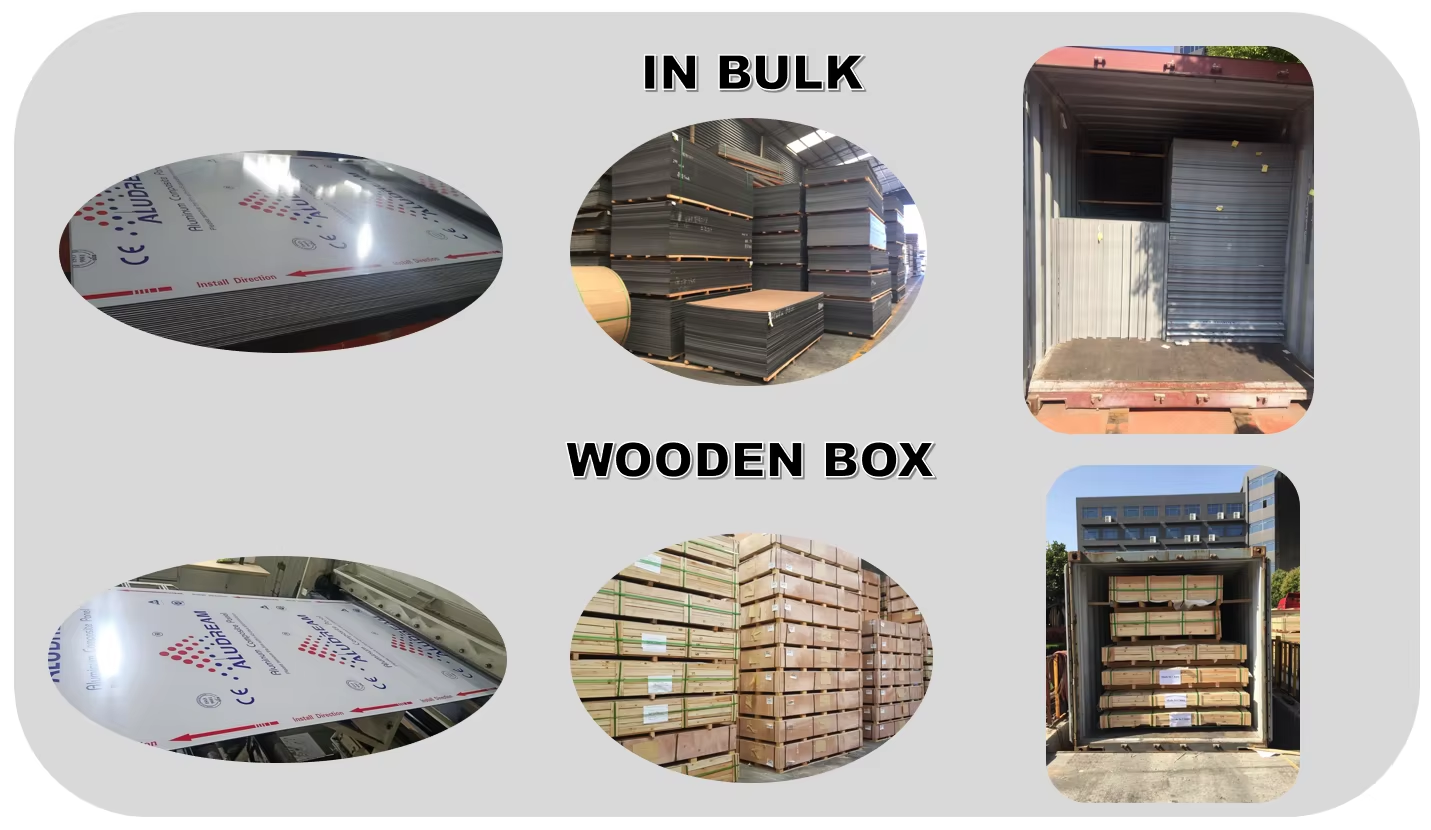

Packing and Shipping:
Product Packaging and Shipping:
The PE Aluminum Composite Panel is carefully packaged to ensure its safe delivery to you. Each panel is wrapped in protective film and then packed in sturdy cartons to prevent any damage during transit.
For shipping, we partner with reliable carriers to deliver your order securely and on time. You can track your package using the provided tracking number for peace of mind.
FAQ:
Q: What is the brand name of the PE Aluminum Composite Panel?
A: The brand name is Alushang.
Q: What is the model number of the PE Aluminum Composite Panel?
A: The model number is 1220*2440MM 4MM.
Q: What certifications does the PE Aluminum Composite Panel have?
A: The panel is certified by SGS and ISO.
Q: Where is the PE Aluminum Composite Panel manufactured?
A: The panel is manufactured in China.
Q: What is the minimum order quantity for the PE Aluminum Composite Panel?
A: The minimum order quantity is 300 square meters
Aluminium Pvdf Customized Color Panel 4 mm Curtain Wall Panel Decoration Wall Cladding
